PCB Prototype Machine

PCB Prototype Machine

EP 42A

Download Catalog
Request a quote
Request a demo
Share On:






Electronic Device

  • We offer cost-effective, environmentally friendly equipment for each stage of the prototyping process, from design verification to structuring and board assembly. It allows customers to produce fully functioning boards quickly and easily by drilling/milling/engraving/routing, mil track and trace.
  • Auto Tool Change is up to 12 tools are automatically changed during production. This reduces set-up times and allows for unattended production.
  • 42,000 rpm spindle motor ensures the shortest machining times and highest accuracy. It can be control spindle speed by software and apply to 4 mil track and trace.

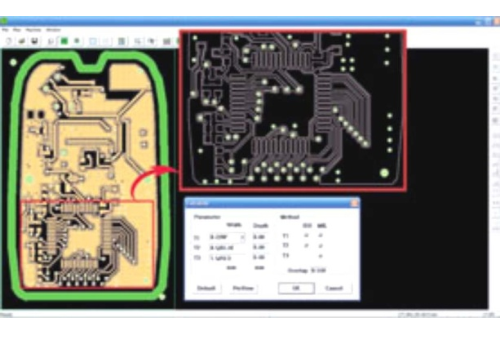

  • PCAM Software: PCAM is compatible with all windows system and accepts standard RS274D/X format Gerber files exported from Layout Software like : P-Cad/ allegro / protel /ALTIUM Designer/ Power PCB(PADS)/ORCAD, etc


Environmental Friendly

Confidentiality

Rapid PCB Making Operation

High Precision

High Rpm

PCAM Software

PCAM is compatible with all windows system and accepts standard RS274D/X format Gerber files exported from Layout Software like : P-Cad/ allegro / protel
/ALTIUM Designer/ Power PCB(PADS)/ORCAD, etc

Vision Align System

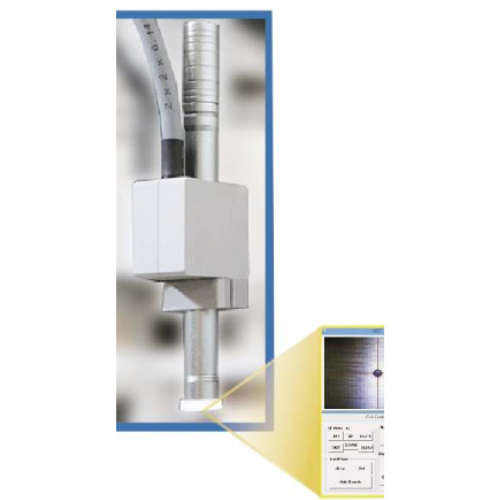

    Optical CCD Align system (camera) Significantly faster and more accurate than the front and back system. Virtually indispensible in structuring multilayer boards and double-sided PCBs. Includes automatic tool length inspection and automatic board surface detecting.

Tools

    1. Engrave Tool: For engraving trace and pad.
    2. End-mill Tool: For copper removing.
    3. Drill Bit: For drilling holes.
    4. Router Bit: For PCB outline cutting.

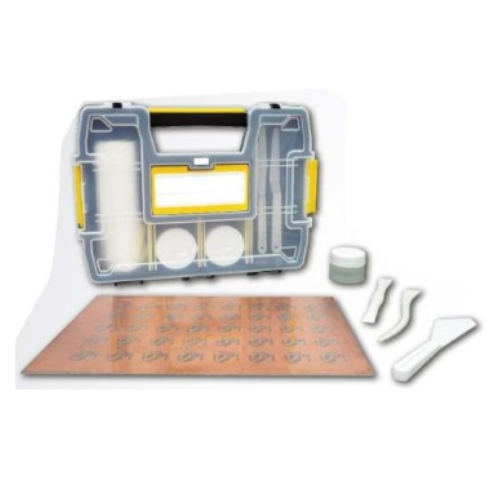

Thru-hole Application

  • No pollution / environmentally friendly
  • Easy Operation / cost saving
  • Apply to minimal 0.2mm holes
  • Working Area: 220mm X 320mm

Technical Specifications

EP-42 EP-42 Auto
Working Area 320 X 230 X 50 mm 320 X 230 X 50 mm
Resolution 0.5 µm 0.5 µm
Control Motor X.Y.Z / Stepping Motor X.Y.Z / Stepping Motor
MAX. Travel Speed 60 mm/sec 60 mm/sec
MIN. Trace Width 4 mil 4 mil
MAX. Working Speed 30 mm/sec 30 mm/sec
Drilling 0.2-3.175 mm 0.2-3.175 mm
Drilling Performance 120 Stroke/min 120 Stroke/min
Tool Change Semi-Automatic Automatic (12 positions)
Tool Holder 1/8″ Socket 1/8″ Socket
Tool Length Detect Auto Tool Length Detect Auto Tool Length Detect
Surface Detect Auto Tool Length Detect Auto Tool Length Detect
Spindle Speed 5,000-42,000 rpm (Software Control) 5,000-42,000 rpm (Software Control)
Machine Weight 58.5Kg 60Kg
Power Consumption AC 110-220 V AC 110-220 V
Dust Enclosure Available Available
